| Model | T-60B | T-120B | T-240B | ||
| Rated Power Output | 60W | 120W | 240W | ||
| Speaker Outputs | 70V, 100V & 4~16Ω | ||||
| Input Sensitivity & Impedance | MIC 1, 2, 3: 5mV/600Ω , Unbalanced phone jack input MIC 2, 3: ±2.5mV/2KΩ , balanced XLR input MIC 2, 3: 775mV/10KΩ , Unbalanced RCA input AUX 1, 2: 350mV/10KΩ , Unbalanced RCA input EMC: 775mV/10KΩ , Unbalanced RCA input | ||||
| Output Sensitivity & Impedance | MIX OUT: 1V/470Ω , Unbalanced RCA output | ||||
| Tone | Bass: ±10dB at 100Hz Treble: ±10dB at 10KHz | ||||
| Frequency Response | 50Hz~16KHz(+1dB, -3dB) | ||||
| S/N Ratio | MIC 1, 2, 3: 66dB, AUX 1, 2: 80dB | ||||
| THD | Less than 0.5% at 1KHz, 1/3 rated power | ||||
| Muting Function | MIC 1 overrides other input signals with 0-30dB attenuation | ||||
| Gain Control | ±2.5mV~ 75mV at 30dB | ||||
| Crosstalk | ≤50dB | ||||
| Phantom Power | +48V, with LED indicator | ||||
| Cooling | Fan automatically start up when temp reaches 55℃ | ||||
| Protection | High temp, overload & short-circuit | ||||
| Power Supply | ~110V/60Hz or ~230V/50Hz or DC 24V | ||||
| Power Consumption | 100W | 200W | 400W | ||
| Weight | 7.3Kg | 9.5Kg | 16.8Kg | ||
| Dimensions | 484x335x88mm | 484×385×88mm | |||
| Finish | Panel: aluminum plate, black Case: steel plate, black | ||||
ITC T-60B 60W RMS Mixer Amplifier, 3 mic, 2 aux, 100V 70V and 4ohms , balanced mic
Roll over image to zoom in

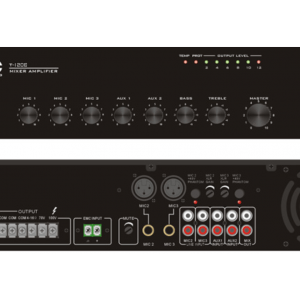

ITC T-60B T-120B T-240B Mixer Amplifier (XLR Balance MIC Input + Phantom Power)
The basic public address mixer amplifiers have power ratings from 60W, 120W, 240W, 350W,
500W to 650W. They are featured of 3 balanced microphone inputs, 2 aux inputs and 1 EMC
input. Priority muting is achieved via EMC for overriding other inputs except Mic1 on front
panel. Individual gain controls are provided for Mic 1-3 and Aux 1-2, bass and treble controls
and master volume control are provided for overall tone control. 70V, 100V and low
impedance 4-16ohms speaker outputs are provided. Extensive protection from short-circuit,
overload and high temp.
* Mixer amplifier for paging and background music system
* Rated power from 60W, 120W, 240W, 350W, 500W to 650W
* 2U rack mount (less than 350W) and 3U rack mount design
* 70V, 100V and low impedance 4-16ohm speaker output
* Three balanced Mic input
* Mic 1(phone jack) with VOX priority and VOX level on front panel
* Mic 2-3 by XLR type on rear panel with phantom power
* Two Aux Inputs and 2 line inputs for spare use
* One EMC priority input
* EMC has priority over all inputs except MIC1
* Mic 1-3, Aux 1-2 and master volume controls and bass/treble tone control
* Short circuit, overload and high temp protection
Optional
* DC 24V available on less than 500W models
* Panel with/without handhold
* Faults monitoring module, it can output short circuit signal to achieve main/spare amplifier
Switch
